Caravan Towing & Wiring Guide 2026: Anderson Plugs & 7 to 12 Pin Adaptors
Everything you need to set up your car for safe, compliant towing.
12 min read · Updated October 2026
Setting up your vehicle to tow a caravan involves more than just a towbar. You need the right wiring for lights, electric brakes, and battery charging: usually a 12-pin trailer plug (or a 7 pin to 12 pin adaptor), plus an Anderson plug to charge the van battery. Get it wrong and you're either unsafe or non-compliant - possibly both.
This guide covers the plugs and wiring between the car and the van. What we stock is below. Brake and charging wiring is a job for an auto electrician.
Trailer plugs & Anderson connectors in the KamperHub Store
Sold and shipped by us, from Australian warehouses.
2pcs Blue Trailer Connector Retainer Heavy Duty Hitch Plug Holders for TrucksView in store →
10x Anderson Style Plug connector 50AMP Caravan Trailer Solar 6AWG GREYView in store →

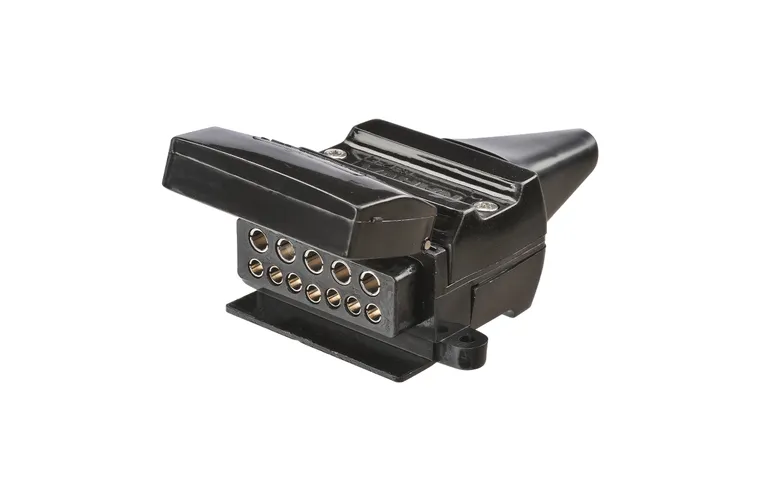

7 Pin Flat Plug to 12 Pin Flat Female Socket Adaptor Trailer Caravan ConnectorView in store →Trailer plugs: 7 pin, 12 pin and adaptors
Most Australian caravans use a 12 pin flat plug, or a 7 pin flat plug on older and smaller vans. The 12 pin carries extra circuits, such as battery charging and accessories.
If the car has a 7 pin socket and the van a 12 pin plug, a 7 pin to 12 pin adaptor joins them for lights and brakes. A trailer plug adaptor only passes the circuits both sides share, so the extra 12 pin circuits will not work through one.
Anderson plugs for charging
An Anderson plug is a heavy-duty connector, commonly rated at 50 amps, used to run a charging cable from the car to the caravan battery, or to connect a portable solar panel.
The plug is only as good as the cable behind it. Use cable heavy enough for the length of the run, crimp the terminals properly, and fit a fuse or circuit breaker near each battery.

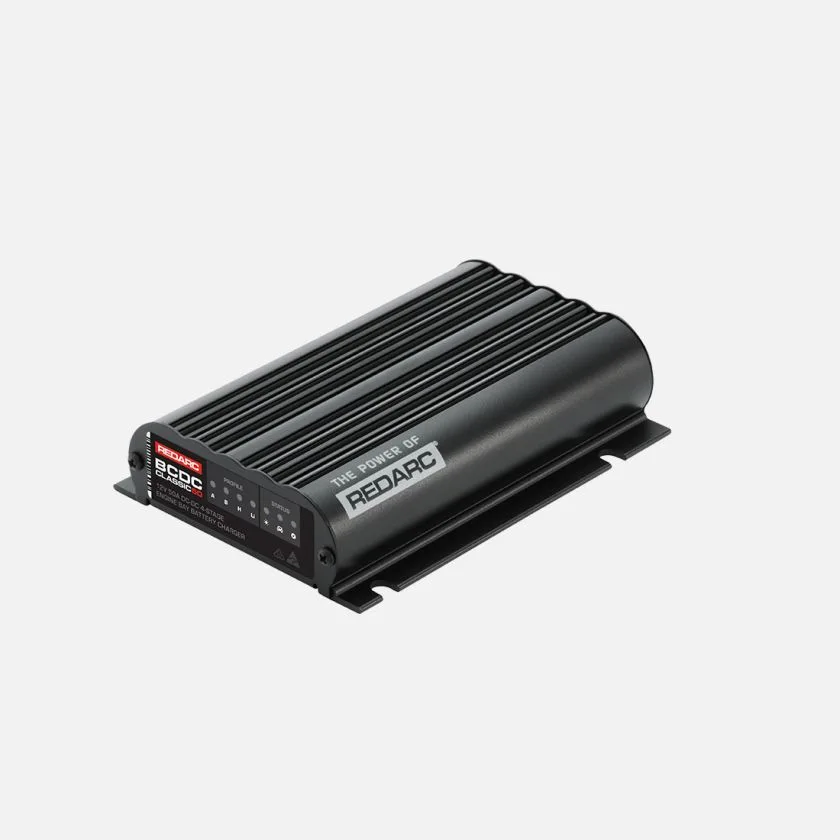

Lithium batteries and long cable runs usually need a DC-DC charger in the van to charge properly. That is an auto electrician job.

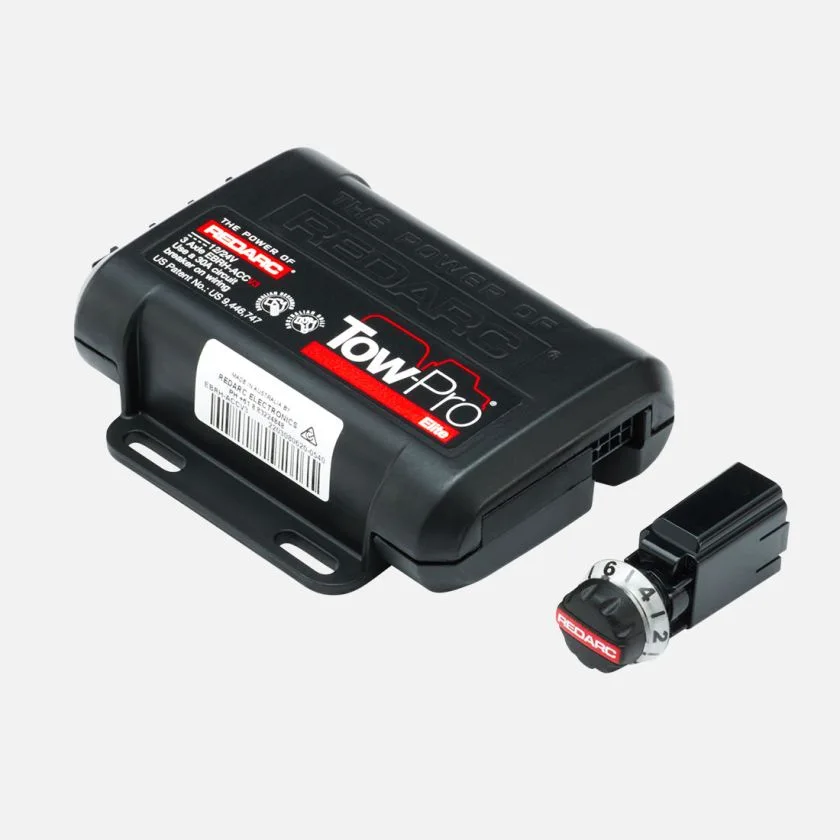

Electric brakes and brake controllers
A caravan with an ATM over 750kg must have brakes, and most Australian vans use electric brakes. Those need a brake controller in the tow vehicle, which sets how hard the van brakes.
Vans with an ATM over 2,000kg also need a breakaway system that applies the van's brakes if it comes off the car.
The brake signal runs through the trailer plug, so a faulty plug or adaptor can mean no van brakes. Test the brakes every time you hitch up.
Before every trip
Check every light with someone watching: indicators, tail lights, brake lights and reverse.
Look for corroded or bent pins, and keep a spare adaptor in the car.
Leave enough slack in the cable to turn fully, without letting it drag on the road.
